Touch Screen Gradient PCR Thermal Cycler with Factory Price

Overview

Basic Info.

Model NO.	GE9612T
Application	School, Hospital, Lab
Type	Heating Type
Number of Programs	10000 +(USB Flash)
Hot Lid Height Adjustable	Stepless Adjustable
Max. No. of Cycle	99
Weight	8.5kg
Max. No. of Step	30
Max. Cooling Rate	4 Degree/S
Hot Lid Temperature	30~110degree
Temperature Control	Block\Tube
Max. Heating Rate	5 Degree/S
Temperature Range	0-100 Degree
Transport Package	Exported Standard Packing
Specification	ce
Trademark	Nanbei
Origin	Zhegnzhou Henan
HS Code	8419899090
Production Capacity	10000 Set

Product Description

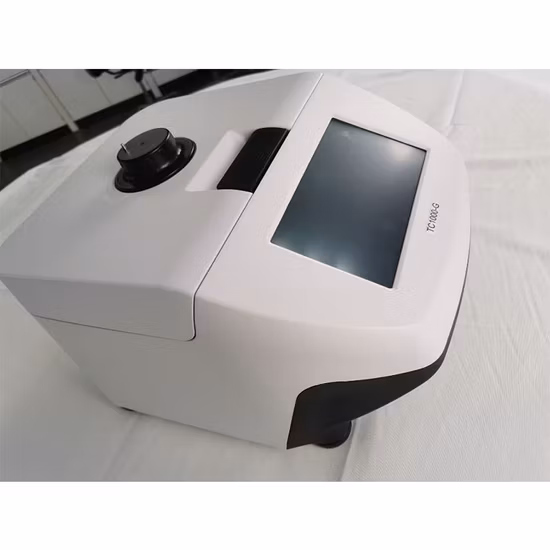

Touch Screen Gradient PCR thermal cycler

Product Description

This series product adopts 8 pieces custom-made US Marlow peltier, Max. ramping rate 5ºC, cycle times >600000. More advanced technologies applied on the product: Windows operating system; color touch-screen; double blocks can run independently; replaceable block; control by PC function; print function; extra large data storage and USB interfaces. All the above functions make it demand high need experiments.

Features:1). Each thermal block has 4 independent temperature control sensors and 8 peltier heating units to ensure accurate and uniform temperature across block surface, and provide users with replicating previous condition set-up.2). 8" TFT color touch-screen with graphical display provides easy use for setting up and monitoring.3). The actual and target temperatures can be viewed and displayed graphically in real time.4). Built-in 11 standard program file template, can quickly edit the required files.5). Internal flash memory for 10000 typical PCR files in free configurable folders.6). Automatic restart after power failure.7). Compatible with devices such as Mouse and Keyboard and capable to transfer data and perform software updates via USB Drive.8). Applicable with the following 0.2ml tube models: non-skirted, semi and fully skirted plated.9). Replaceable module, the choice of a dual-block module can simultaneously run two different PCR programs.Technical parameters of pcr thermal cycler:

Model	GE9611T/6021T/4851T/4831T/3841TGeneral	GE9612T/6022T/4852T/4832T/3842TGradient
Capacity	96×0.2ml , 60×0.5ml , Double 48×0.2ml ,48×0.2ml+30×0.5ml,384well , In-situ Plate
Temperature Range	0~100ºC
Max. Heating Rate	5ºC/s
Max. Cooling Rate	4ºC/s
Uniformity	≤±0.2ºC
Accuracy	≤±0.1ºC
Display Resolution	0.1ºC
Temperature Control	Block\Tube
Ramping Rate Adjustable	0.1~5ºC
Gradient Uniformity	/	≤±0.2ºC
Gradient Accuracy	/	≤±0.2ºC
Gradient Temp. Range	/	30~100ºC
Gradient Spread	/	1~30ºC
Hot Lid Temperature	30~110ºC
Hot Lid Height Adjustable	Stepless Adjustable
Number of Programs	10000 +(USB FLASH)
Max. No. of Step	30
Max. No. of Cycle	99
Time Increment/Decrement	1 Sec ~ 9 Min 59 Sec
Temp. Increment/Decrement	0.1~9.9ºC
Pause Function	Yes
Auto Data Protection	Yes
Hold at 4ºC	Forever
Print	Yes
LAN to computer	Yes
LCD	8inch,800×600 Pixels, TFT
Communication	USB2.0 , LAN
Dimensions	380mm×240mm×260mm (L×W×H)
Weight	8.5kg
Power Supply	85~264VAC , 47~63Hz , 600 W
